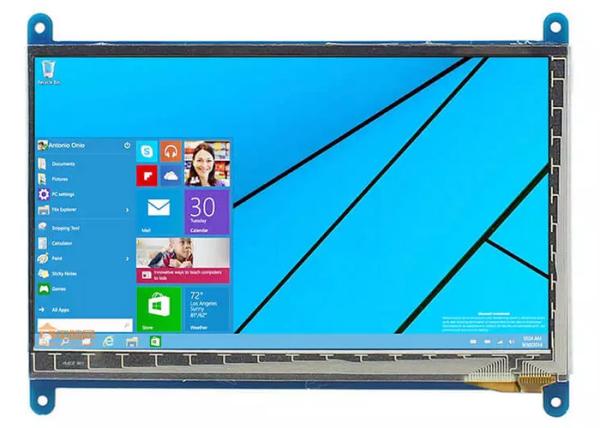

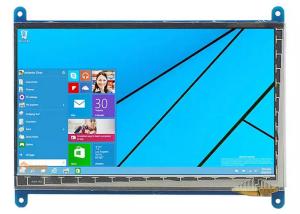

7 Inch TFT Lcd Capactive Touchscreen Display High Brightness HDMI Lcd + PCB Drive Board for Raspberry Pi 3
Various Production Line : We provide a wide range of lcd led displays, hot smart products, promotional gifts for your customers, everything we offered are easilly customized with your logo or your company information for advertising them.
* Module Structure: LCD Display + CTP Touch + PCBA
* Driver IC:NT68661
* Backlight Type: 3*9 LEDS / White
* Module Interface Type: HDMI Interface ( TFT ) and USB Interface ( CTP ) * System Support: Raspberrv Pi / Win7 / Win8 / Win10 and Android / Linux (need to be configured first)
A. Product Details:
Each LCD will be tested one by one with our device before shipping to make sure the lcd will works perfect on your device,if you don't know how to install it,we suggest you to find a professional technician to do for you.Installation guide not provide, please be sure you know how to install it before bid.
B. Specifications:
Driven by Raspberry Pi (linux) & win7/win8/win10 systems
| | | |
| | Display outline size | 183.26 ( H ) * 100 ( W ) * 20 mm ( T ) |
| | VA size | 154.08 * ( H ) * 85.92( W ) mm |
| | Resolution | 800 RGB ( H ) x 480 ( V ) |
| 4 | With /Without Touch screen | Capacitvie Touch |
| 5 | Interface | HDMI, USB |
| 6 | Backlight | 21 Led |
| 7 | Color | 262K |
| 8 | System Support | Android/Linux (need to be configured first) |
C. Structure Diagram:
HDMI driver board
(It includes HDMI board, LCD cable and connector)
HDMI to MIPI is a super board which convert the HDMI to MIPI DSI for LCD and OLED screens.
Application Range PC,Raspberry Pi(s),ARM: VR, 3D printer,Projector,FPV,Car Display,PLC Display,etc.
Features: Plug and play,resolution:2K / 4K. single / Dual screens , normal / Touch display.
FAQ
1.What is your delivery method?
DHL , UPS , FEDEX ,TNT
2. What is the lead time of the products?
Samples in stock will be sent within 3 days after payment.
25~35 working days for mass production
3. Payment methods?
T/T, Paypal and Western union etc.
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.
4. How long is the warranty period?
Generally the warranty period is one year. It depends on different products.
5.What is the Product MOQ?
Different product has the different MOQ, please contact us sales for detailed information.
6.What is the products application?
Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.
